Quarra 1G/10G PTP Ethernet Switch

Quarra 1G/10G PTP Ethernet Switch

PTP IP系 試験・測定・監視・検証機



マルチプロファイル対応 IEEE 1588v2 PTP Layer2 Switch

Quarra 1G PTP Ethernet Switch

Quarra 10G PTP Ethernet Switch

Quarra 1G Compact PTP Ethernet Switch

Quarraスイッチシリーズは、高精度なタイミングと制御が要求されるキャリアクラスのアプリケーション向けに設計されています。これらのスイッチは、音声/ビデオ放送、防衛とセキュリティー、金融、ライフライン、テレコムやエンタープライズのIT等におけるプロフェッショナル市場に適しています。

標準の1RUラックマウントユニットは2電源を有する電源冗長構成となっており、このクラス最高のレイヤ2 IEEE 1588v2 アルゴリズムに対応した1ギガビット/10ギガビットポートを有するスイッチです。GPSからの1PPSによる外部基準入力が標準で実装されております。また、レイヤ1Ethernet Synchrinous(SyncE)に対応した機種もラインアップしています(Quarra 1G,Quarra 1G Compactのみ)。

QuarraスイッチシリーズはIGMP v2/3、QoS、プロテクションスイッチ、VLAN、MEFサービスデリバリおよびネットワークOAMに対応しています。

  • ナノ秒オーダーの高精度時刻同期を実現する高精度なIEEE 1588, ITU-T G.8265.1対応L2スイッチ
  • DSPLL技術を採用した正確な Synchronous (L1)Ethernet, Master, Slave タイミング
  • 1PPS同期I/F(入力:SMA)を装備
  • Boundary Clock, Transparent Clock対応
  • RAVENNA AES 67(Audio over IP)互換
  • IEEE802.1 AVB互換
  • WebベースのGUIまたはコマンドラインインターフェースによる完全制御、トレーニング要らずの簡単設定を実現

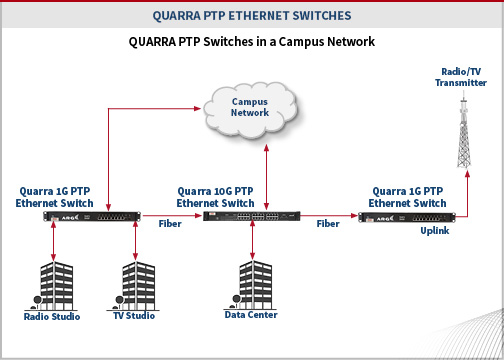

  • このような場面で活躍します
    -PTP、QoSおよびマルチキャストフィルタを活用したIPネットワーク上でのライブビデオ/オーディオシステムの構築

    -携帯基地局におけるGPSのバックアップ

    -高度なネットワーク同期を必要とするテレコムネットワーク

    -PTPでナノ秒クラスの正確さを求める金融およびトレーディング用のネットワーク

キャリア・イーサネット
  • Layer-2 IEEE 1588v2 : Precision Time Protocol (PTP) timing and synchronization
  • IEEE 802.1ad : Provider bridging (VLAN Q-in-Q) switch
    • 8 MACs, 4K VLANs
  • Per queue MEF E-LINE or per port MEF E-LAN, E-TREE Service Points
    • Per port per queue Dual Leaky Bucket Service Policers with PCP or DSCP remarking per Service port
    • Static tagging options per Service Point
  • OAM Hardware for generating CCM messages, CCM checking is done by software
    • Software of OAM and protection switching
Quality of Service
  • EPS and ERPS Protection Switching
  • TCAM-based VLAN classification and translation with pattern matching against Layer-2 through Layer-4 information
  • Up to 256 QoS and VLAN TCAM entries
  • Eight QoS queues per port with strict or deficit weighted round-robin scheduling (DWRR)
  • DSCP translation, both ingress and/or egress
  • DSCP remarking based on QoS and VLAN TCAM entries
  • VLAN (PCP, DEI and VID) translation, both ingress and egress
  • Per-queue, per-port policing and shaping, programmable in steps of 100 kbps
  • Per-flow policing through TCAM-based pattern matching, Up to 256 policers
  • Full-duplex flow control (IEEE 802.3x) and half-duplex backpressure, symmetric and asymmetric
レイヤ2スイッチ
  • Port mirroring
  • Port-based access control
  • IEEE 802.3ad : Link aggregation
  • IEEE 802.1x : Network Access Control
  • IEEE 802.1w : Rapid Spanning Tree Protocol
  • IEEE 802.1s : Multiple Spanning Tree Protocol
  • Simple Network Management Protocol (SNMP)
  • Independent and shared VLAN learning
  • 256 VLAN egress tagging TCAM entries
  • Link aggregation traffic distribution is programmable and based on Layer-2 through Layer-4 information
  • Basic Switching - Forwarding, address learning and address aging
  • VLAN IEEE 802.1Q (4,096 VLAN’ s) - Push / pop / translate up to two VLAN tags; translation in ingress and / or egress
  • 8,192 MAC addresses. Including Generic Attribute Registration Protocol (GARP)
  • Wire-speed hardware-based learning and CPU-based learning configurable per port
マルチキャスト
  • 8K Layer-2 Multicast group addresses with 64 port masks
  • 8K IPv4/IPv6 multicast groups
  • Internet Group Management Protocol v2 & v3
  • Multicast Listener Discovery (MLDv1)
  • Multicast Listener Discovery (MLDv2) with source specific multicast forwarding
諸元
  • 電源
    • 入力電圧: AC 100 - 240 V 50/60 Hz
    • 最大消費電力: 50W
  • 動作環境
    • 動作温度:0 ~ 40 ℃
    • 動作湿度: 10 ~ 95% (結露なきこと)
  • 外形等
    • Quarra 1G PTP Ethernet Switch 寸法:(H) 44.45mm x (W) 438.15mm x (D) 171.45mm 重量:2.5 Kg
    • Quarra 10G PTP Ethernet Switch 寸法:(H) 44.45mm x (W) 438.15mm x (D) 203.2mm 重量:3.2 Kg
    • Quarra 1G Compact PTP Ethernet Switch 寸法:(H) 44.45mm x (W) 222.25mm x (D) 171.45mm 重量:1.4 Kg
